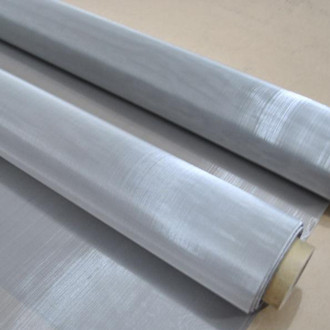

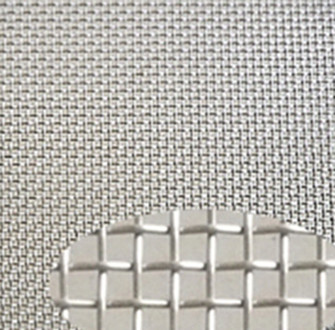

Stainless steel wire mesh
We're professional& experienced manufacturer of stainless steel wire mesh from 2-600mesh with width 50cm- 300cm, our work plant has 15 sets of stainless steel wire drawing machines, 15 sets of iron wire drawing machines, 25 sets wire mesh weaving machines and 5 production lines of wire mesh, enough production ability and soon delivery time is gurranteed.
All our mesh are produced under ISO9001 quality management systems,  the material can be SUS/AISI 201 202 302 304 310 310S 316 316L etc, we welcome you to inquiry from us any time.



Quick details of our steel mesh

Quick details of Gezi stainless steel wire mesh
Place of origin China Material Stainless steel wire Wire material SUS/AISI 201 202 302 304 310 310S 316 316L etc
Weave style Plain,twill,dutch weave Mesh count 2- 600mesh Width 50cm- 300cm
Length normally 30- 50m Wire diameter 0.015mm- 2mm Application Filtration aream, window screen

Characteristic
1) Magnetic
2) Wear Resistance
3) Heat Resistant
4) Corrosion Resistant
5) Acid and Alkali Resistant
6) Long Life

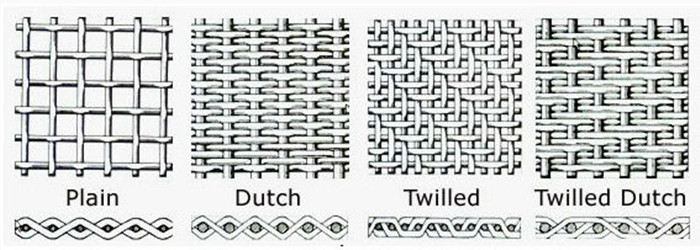

Weaving type of stainless steel wire mesh



Main categories of Stainless steel wire mesh

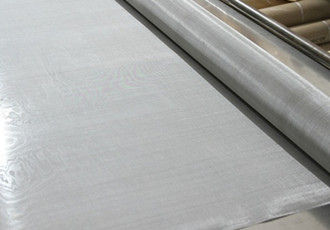

1. Plain weave stainless steel wire mesh

One of the most common weaving methods mesh which is widely used in industrial production and civil life,
the main characteristic is the density of warp and weft wire diameter is same.

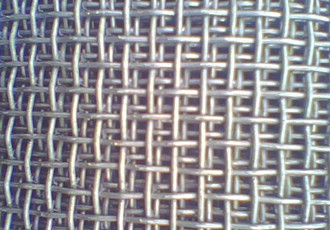

2. Stainless steel square wire mesh

Features: Precision structure, uniform mesh, good corrosion resistance, strong and durable.
It' s widely used in industry and construction industry, sand filtration, filter and gas liquid area.
It can be used for the mechanical attachment of safety protection, and it can also be used to replace the slivers of walls and ceiling.

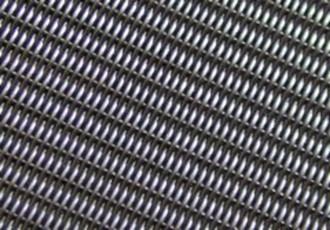

3. Stainless steel dutch weave mesh

Good filtration precision, high strength contrast network load.
Usage: it mainly used for aerospace, petroleum, chemical industry, scientific research and transportation industry, still can make boxes nets, coal washing nets, etc.



Normal items of different of stainless steel mesh

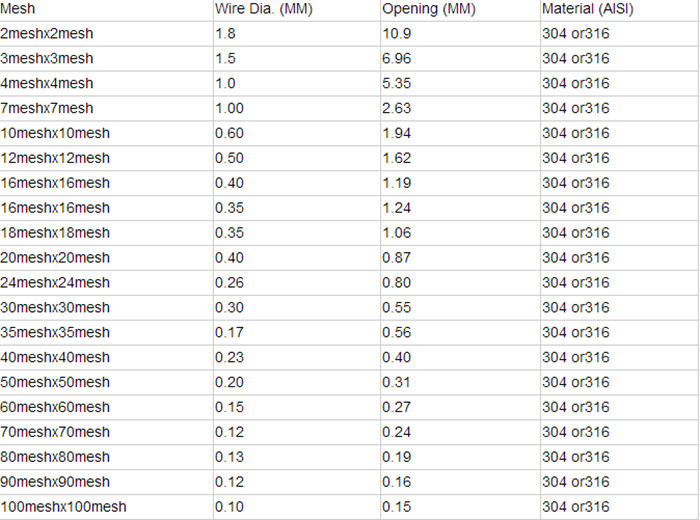

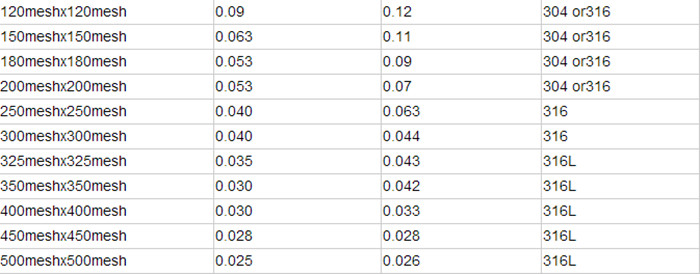

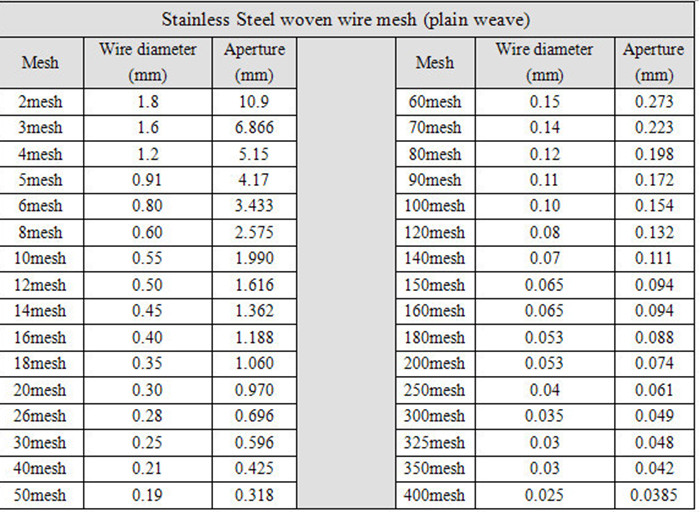

1. Plain weave stainless steel wire mesh




2. Stainless steel woven wire mesh

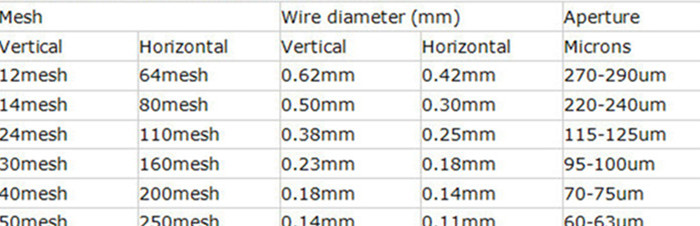

3. Plain dutch weave

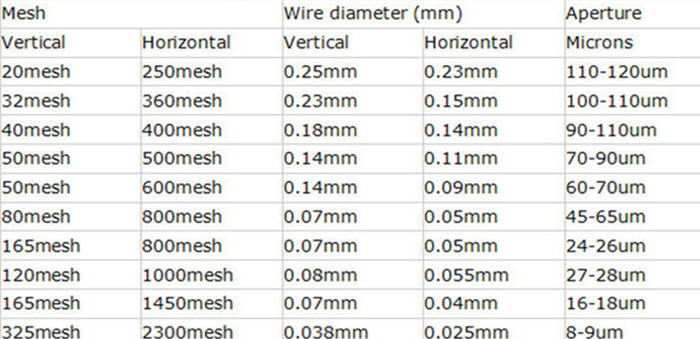

4. Twill dutch weave

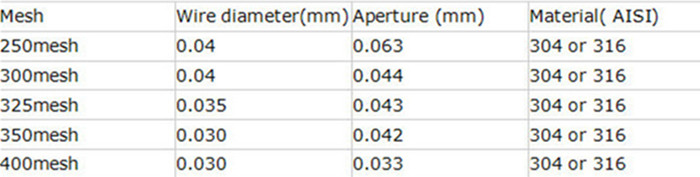

5. Twill weave

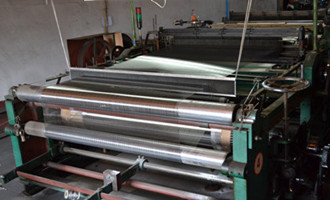

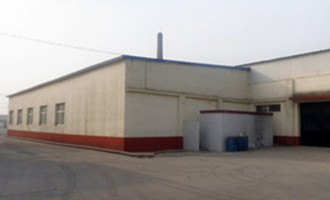

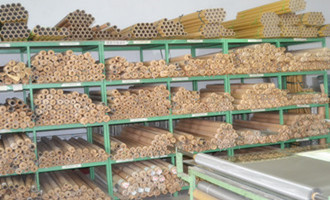

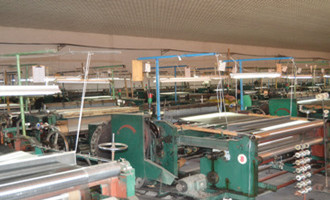

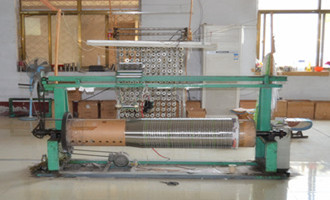

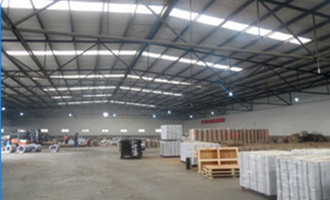

Our work plant








Appication of Stainless Steel Wire Mesh

It mainly used in industries of mining, oil, chemicals, food, pharmaceuticals, machine making, scientific research, aviation, etc.

1)Filteration area: used in oils, chemicals, food, pharmaceuticals, etc.

         eg: used for the Oven Filter (SS310S material x 0.9mm wire dia. x 5.6 mesh)

         eg: used for the Paper Making (SS304 material x 1.1mm wire dia. x 7 mesh)

2)Anti-insect: used in windows or doors of house, garden, buliding, office, ect.

         eg: used for the Window Screen (SS201 material x 0.21mm wire dia. x 18 mesh)

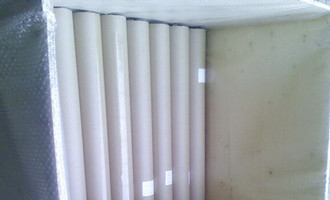

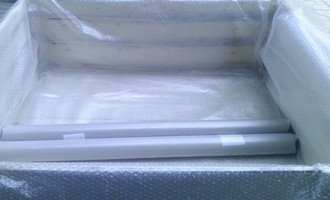

Package details

Normally with kraft paper inside =for moisture proof and anti extrusion, for outside wrap with PVC woven bag or waterproof
paper and then in wooden case or on pallets.





Sample

We can provide for you free sample for your checking according to the mesh price.
We can also accept small trial order, sample order from 1 square meter.

Why choose us?

1. We' re professional and experienced in wire mesh area for more than 20 years.
2. We can fufil your different request on mesh quality level, price, purchasing quantity, packages, etc.
3. We can print your LOGO as your requirement.
4. Due to the different material and production process, we can fufil your different level requirement of mesh, according to your actual need then.

For Stainless steel printing mesh specity, please click Here as Link.

More items, please check our Terms& service page.

Welcome to inquiry! We' re here for you!
